Introduction
Heavy machinery faces constant shock, vibration, and heavy loads that can quickly wear out rigid components. Rubber-to-metal bonded parts help solve this by combining the strength of metal with the damping and flexibility of elastomer, creating mounts, bushings, and isolators that protect both equipment and operators. Their role goes beyond comfort: they reduce vibration transfer, limit fatigue damage, improve stability, and support longer service life in demanding environments. This article explains why these bonded components are widely used in heavy machinery, how they manage dynamic forces, and what practical advantages they offer for reliability, maintenance, and overall machine performance.
Why metal bonded parts matter in heavy machinery
Heavy machinery operates in some of the most unforgiving environments on the planet. From mining excavators to agricultural tractors, the physical forces exerted on these machines threaten structural integrity and operator safety. Metal bonded parts—components where an elastomer is chemically adhered to a metal substrate—serve as the critical interface that manages these extreme dynamic forces.
Without specialized isolation components, the sheer mechanical stress of heavy-duty operations would rapidly degrade both the equipment and the surrounding infrastructure. Understanding how these parts function is essential for maximizing equipment lifespan and ensuring operational safety.
How bonded parts reduce vibration and shock
The primary function of rubber-to-metal bonded parts is the attenuation of kinetic energy. When heavy equipment traverses rough terrain or operates high-torque implements, the resulting shockwaves can fracture rigid metal-to-metal connections. The elastomer acts as a damper, transforming kinetic energy into low-grade thermal energy, while the metal substrate provides the necessary mounting structure and load distribution.
By isolating the frequency of the vibration, these components can achieve vibration reduction rates of 70% to 85%. This level of isolation prevents harmonic resonance from tearing apart sensitive engine components, hydraulic lines, and electronic sensors, ensuring that the machine operates within safe mechanical tolerances.
Why OEMs and fleet operators rely on them
Equipment manufacturers and fleet managers prioritize reliability above all else, as the economics of heavy machinery depend heavily on continuous uptime. In the mining and construction sectors, unplanned downtime can easily exceed financial losses of $1,000 per hour per machine. As global infrastructure demands accelerate, the tolerance for equipment failure decreases significantly.
By integrating metal bonded mounts, OEMs reduce the transmission of destructive forces throughout the chassis, thereby extending the lifecycle of the entire machine. Fleet operators benefit from fewer catastrophic failures, lower maintenance overhead, and improved operator comfort, which directly correlates with sustained productivity and compliance with strict occupational health guidelines.

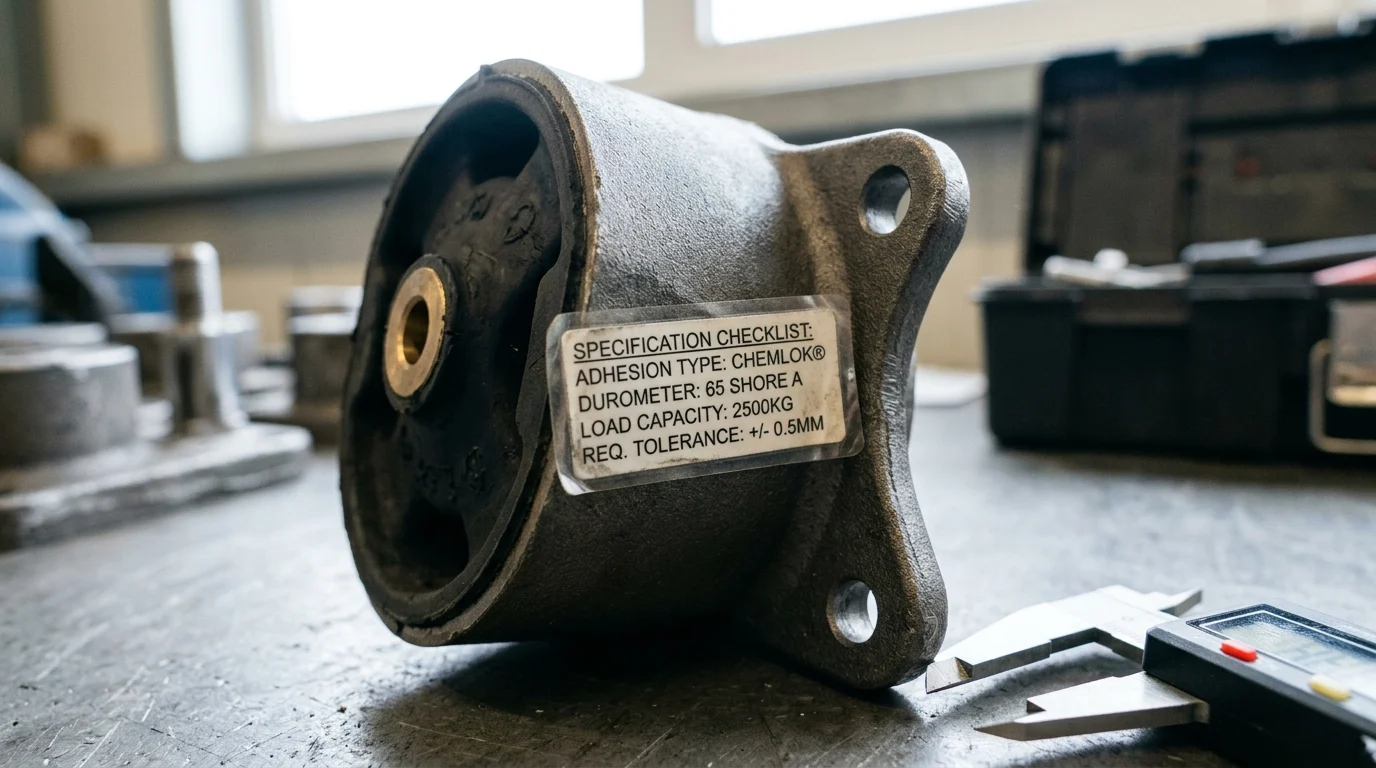

What metal bonded parts are and which specifications matter
Understanding the technical specifications of metal bonded parts is essential for their successful application. The bonding process is not merely an adhesive application but a complex vulcanization process that creates a chemical bridge between the rubber and the metal, yielding a component stronger than the sum of its independent parts.
Common types used in heavy machinery
Heavy machinery utilizes several specialized configurations of bonded parts depending on the direction and magnitude of the load. Engine and cab mounts isolate high-frequency vibrations, while heavy-duty track pads and spherical bearings absorb massive impact shocks and allow for controlled articulation.
The table below outlines common bonded part types and their typical operating parameters:
| Component Type | Typical Load Capacity | Primary Function |
|---|---|---|
| Cylindrical Bobbins | 50 kg – 500 kg | Shear and compression isolation for auxiliary systems |
| Conical Engine Mounts | 500 kg – 3,000 kg | Captive isolation for powertrains and heavy cabs |
| Spherical Bearings | 2,000 kg – 15,000+ kg | High-load pivot points and suspension articulation |
| Vulcanized Track Pads | 5,000 kg – 20,000 kg | Traction improvement and surface protection |
Key factors: rubber, metal, bond strength, and load
The efficacy of a bonded part relies on four critical pillars: the elastomer formulation, the metal grade, the vulcanized bond strength, and the load profile. Natural rubber is frequently specified for its superior tear resistance and dynamic fatigue properties, while synthetic elastomers like Nitrile or Neoprene are selected when resistance to oils, fuels, or extreme weathering is required.
Bond strength is a non-negotiable metric. According to testing frameworks aligned with ISO standards, the tensile strength of the chemical bond must typically exceed the tear strength of the rubber itself. In heavy-duty applications, a minimum peel strength of 40 to 50 lbs/in (7 to 9 kN/m) is standard. If the bond fails before the rubber tears under load, the manufacturing process is considered defective.
How metal bonded parts compare with mechanical assemblies
Engineers frequently face the choice between specifying a fully vulcanized metal bonded part and utilizing a traditional mechanical assembly, such as a loose rubber pad compressed between two bolted metal plates. While mechanical assemblies appear simpler and more accessible, bonded parts offer distinct operational advantages in high-stress environments.
Performance, maintenance, and total cost differences
Mechanical assemblies rely on compression and friction to hold the dampening material in place. Over time, dynamic vibrations cause bolts to back out and mechanical interfaces to fret, necessitating regular inspection and re-torquing. In contrast, fully bonded parts are unified structures that eliminate internal friction and the risk of component separation under tension.
This fundamental difference profoundly impacts maintenance schedules and the total cost of ownership. Mechanical vibration assemblies may require physical inspection and tightening every 500 operating hours. Conversely, high-quality metal bonded mounts are essentially maintenance-free and routinely last 5,000 to 10,000 operating hours before the elastomer degrades to the point of requiring replacement.
| Feature | Metal Bonded Parts | Mechanical Assemblies |
|---|---|---|
| Assembly Time | Fast (Single Component) | Slow (Multiple loose parts) |
| Maintenance | Zero (Replace at end-of-life) | High (Requires re-torquing) |
| Multi-directional Load | Excellent (Handles shear & tension) | Poor (Fails under tension) |
| Initial Unit Cost | Higher (Requires vulcanization tooling) | Lower (Standard hardware) |
Key trade-offs in vibration isolation and durability
The primary trade-off lies in initial flexibility versus long-term durability. Bonded parts excel in managing complex, multi-directional forces—compressing under direct weight while simultaneously shearing to absorb lateral movement. Because the rubber is chemically locked to the metal, it cannot slip or chafe, which prevents premature abrasive wear.
However, bonded parts require precise engineering and a dedicated supply chain. If a mechanical assembly fails, a technician can often swap out a generic rubber pad in the field to keep the machine running. If a custom bonded mount fails, an exact replacement must be sourced. Therefore, the inherent durability of the bonded part must be high enough to offset the loss of field-expedient modularity.
How to specify, source, and validate metal bonded parts
Successfully integrating metal bonded parts into heavy machinery requires a rigorous approach to specification, sourcing, and quality validation. Procurement and engineering teams must collaborate closely with specialized manufacturers to ensure the final product can survive its intended lifecycle without catastrophic failure.
How to define loads, motion, and environment
The specification process begins by defining the exact operating environment. Engineers must calculate static loads, which represent the baseline weight of the supported component, and dynamic loads, which are the multiplied forces experienced during operation or impact. Furthermore, the motion profile—whether the part will experience compression, shear, tension, or a combination—dictates the geometry of the metal substrate and the hardness (durometer) of the rubber.
Environmental factors are equally critical. Heavy machinery components must often operate seamlessly across extreme temperature gradients, typically ranging from -40°C in arctic mining operations to +120°C near enclosed engine blocks. Continuous exposure to UV radiation, ozone, hydraulic fluids, and caustic chemicals will dictate the specific polymer chain required for the elastomer formulation.
Quality checks, testing methods, and supplier capabilities
Sourcing bonded parts requires evaluating a supplier's quality management systems and testing capabilities. Reliable manufacturers perform extensive destructive testing, including tear testing and fatigue cycling, to validate the integrity of the chemical bond under simulated field conditions.
For heavy machinery, defect tolerance is exceptionally low. Leading suppliers target defect rates below 50 PPM (parts per million). Validation should include verifying the supplier's adherence to global quality frameworks, ensuring that every batch of vulcanized parts meets strict dimensional and material specifications before deployment.
Tooling, lead times, and production volume
The transition from prototype to production involves significant logistical considerations. Because metal bonded parts require custom molds to inject and vulcanize the rubber directly onto the treated metal, tooling costs are a major factor. Depending on the size and complexity of the part, new mold tooling typically ranges from $3,000 to $15,000.
Production timelines and minimum order quantities (MOQs) must also be factored into the overall sourcing strategy. Standard lead times for custom tooling and initial production runs generally span 6 to 12 weeks. Due to the complex setup times involved in the vulcanization process, manufacturers usually require MOQs starting at 500 to 1,000 units, making accurate demand forecasting an essential part of procurement.
How to choose the right metal bonded parts strategy
Developing a procurement and engineering strategy for metal bonded parts requires balancing initial capital expenditures against long-term operational efficiency. Companies must decide when to leverage existing market solutions and when to invest heavily in proprietary designs to protect their equipment.
When to choose standard vs custom parts
Standard, off-the-shelf bonded parts are ideal for auxiliary equipment, such as mounting radiators, lightweight cabs, or exhaust systems. These parts carry zero tooling costs, boast immediate availability, and possess well-documented performance curves. However, for primary drivetrains, heavy suspension pivots, or unique chassis designs, custom-engineered parts are unavoidable.
Investing in custom parts allows engineers to optimize the exact stiffness and damping characteristics required for a specific machine. While custom engineering typically adds 15% to 20% to upfront design and tooling costs, it often results in parts that integrate more seamlessly into the chassis layout. This precision can reduce factory assembly times by up to 10% and significantly lower warranty claims over the machine's lifespan.
Decision criteria for OEMs, distributors, and maintenance teams
The decision-making process varies significantly across the heavy machinery ecosystem. OEMs prioritize performance optimization and assembly line efficiency, often absorbing higher tooling costs for custom solutions that give their machines a competitive edge in durability. Maintenance teams and fleet operators, however, prioritize parts availability and ease of installation to minimize daily downtime.
Distributors play a crucial role in bridging this gap by maintaining robust inventories of high-wear bonded parts. By analyzing international trade metrics and supply chain vulnerabilities, stakeholders can optimize their inventory strategies. Ultimately, the right strategy evaluates the total cost of ownership, recognizing that a marginally more expensive, high-quality metal bonded part pays for itself by keeping a multi-million-dollar machine fully operational.
Key Takeaways
- The most important conclusions and rationale for metal bonded parts
- Specs, compliance, and risk checks worth validating before you commit
- Practical next steps and caveats readers can apply immediately
Frequently Asked Questions
Why are rubber-to-metal bonded parts preferred in heavy machinery?
They cut vibration and shock, protect critical components, and help reduce downtime. In harsh equipment use, they also improve operator comfort and extend service life.
Which bonded part types are common for heavy equipment?
Common options include cylindrical bobbins, conical engine mounts, spherical bearings, and vulcanized track pads. The right type depends on load direction, movement, and mounting space.
What specifications matter most when selecting metal bonded parts?
Check elastomer type, metal grade, bond strength, and actual load profile. For oily or fuel-exposed systems, choose NBR or similar oil-resistant compounds.
How do bonded parts compare with simple mechanical rubber assemblies?
Bonded parts provide more reliable load control and better vibration isolation because the rubber is chemically bonded to metal. They are usually safer and longer-lasting in heavy-duty service.
Can King Rubber support custom rubber-to-metal bonded parts?
Yes. King Rubber can help match compound, metal insert, and part design to your machinery’s load, environment, and durability requirements for a more suitable custom solution.
