What load capacities do Rubber bushings and mounts support?

Introduction

Rubber bushings and mounts can support anything from light instrument loads to several tons, but the actual limit depends on more than size alone. Material hardness, shape, bonded construction, direction of force, and operating conditions all affect how much load a bushing can carry without excessive deflection, heat buildup, or early failure. This article explains the typical load ranges seen in common applications, how compressive, radial, axial, and torsional loads differ, and why load capacity must be balanced against vibration isolation. By the end, you’ll have a clearer basis for comparing designs and selecting a bushing that matches both structural demands and service life expectations.

Why Rubber Bushing Load Capacity Matters

Rubber bushings serve as critical interface components in mechanical and structural systems, designed to absorb vibration, accommodate limited motion, and support significant physical loads. The load capacity of a rubber bushing determines its ability to maintain structural integrity while subjected to compressive, radial, torsional, or axial forces. Depending on the application, load capacities can range from as little as 50 pounds in small precision instrumentation to over 10,000 pounds in heavy-duty mining and construction equipment.

Understanding and specifying the correct load capacity is paramount for system reliability. A bushing must possess the exact mechanical properties required to bear the operational weight of the assembly while retaining enough elasticity to decouple destructive frequencies. When engineers evaluate rubber bushings, they must balance load-bearing requirements with the necessary dynamic stiffness to ensure optimal performance over the component's lifecycle.

Impact on durability and vibration isolation

The relationship between load capacity and vibration isolation is inherently inversely proportional. To support heavier loads, a rubber bushing typically requires a higher durometer (hardness) compound, often ranging between 60 and 80 Shore A, or a larger geometric volume. However, stiffer rubber transmits higher-frequency vibrations across the mechanical joint, reducing the component's isolation efficiency.

Conversely, softer compounds (40 to 50 Shore A) provide excellent damping and lower transmissibility but are susceptible to excessive deflection and bottoming out under heavy loads. Engineering a durable system requires calculating the exact static load the bushing will carry and selecting a stiffness rate that achieves the desired natural frequency—typically aiming for a transmissibility ratio of less than 1.0 at the primary operating frequency.

Risks of underspecification

Failing to specify adequate load capacity introduces severe mechanical risks. Underspecification leads to excessive continuous deflection, which generates internal friction and localized heat buildup (hysteresis) within the elastomer. This thermal degradation rapidly accelerates fatigue failure, causing the rubber to harden, crack, or delaminate from its metal sleeves.

Quantitatively, exceeding a rubber bushing's rated static load by just 20% can reduce its operational fatigue life by up to 50%. In extreme cases of overloading, the bushing may experience catastrophic tearing or complete structural collapse, resulting in metal-to-metal contact, severe NVH (Noise, Vibration, and Harshness) issues, and potential damage to the surrounding mechanical architecture.

Load Types and Capacity Factors

Load capacity in elastomeric components is not a single, static figure. It is a multidimensional metric that changes based on the direction of the applied force, the frequency of the motion, and the duration of the stress. Evaluating how a rubber bushing will perform requires categorizing the specific load types it will encounter in its operating environment.

Static, dynamic, and shock loads

Rubber bushings are subjected to three primary load profiles: static, dynamic, and shock. Static load represents the constant dead weight of the supported mass, such as an engine resting on its mounts. Dynamic loads encompass continuous, cyclic forces generated during operation, such as vibrations ranging from 10 Hz to 50 Hz in automotive suspensions.

Shock loads are sudden, high-amplitude impacts caused by external events, such as a vehicle hitting a pothole or a machine experiencing a sudden jam. To prevent failure, bushings subject to shock impacts are typically engineered with a safety factor of 3x to 5x the static load rating, ensuring the elastomer can absorb the kinetic energy without exceeding its ultimate tensile strength.

Factors that determine load capacity

The absolute load capacity of a bushing is dictated by its physical geometry, the formulation of the elastomeric compound, and the integrity of the rubber-to-metal bond. The "shape factor"—the ratio of the loaded area to the bulge area—plays a critical role; a higher shape factor generally yields a higher compressive load capacity. Natural rubber is widely favored for its superior tensile strength (often exceeding 20-30 MPa) and tear resistance compared to synthetic alternatives.

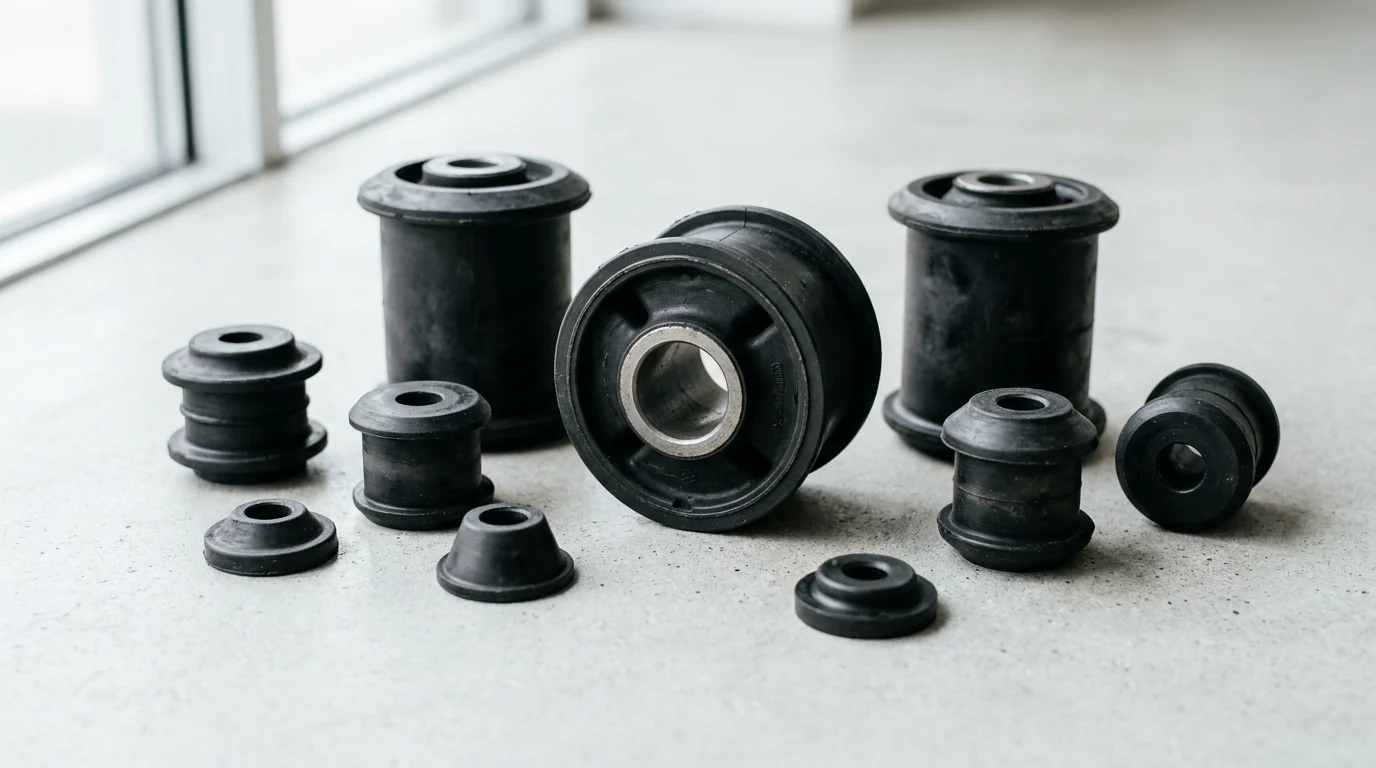

Bushings vs mounts

While often used interchangeably in casual industry parlance, bushings and mounts handle loads differently due to their distinct orientations. Bushings are primarily cylindrical components designed to manage radial loads (perpendicular to the central axis) and torsional loads (twisting). A typical heavy-duty suspension bushing might be rated for 2,000 lbs of radial load.

Mounts, conversely, are typically designed to manage axial or compressive loads (parallel to the axis or pressing straight down). Industrial machinery mounts are optimized for high compression and can routinely support 5,000 to over 20,000 lbs per unit, depending on their footprint and internal metal reinforcement plates.

How to Compare Rubber Bushing Options

Sourcing the correct rubber bushing requires moving beyond basic dimensional fitment (inner diameter, outer diameter, and length) to evaluate specific mechanical performance criteria. Buyers must analyze supplier data sheets to ensure the component's load-deflection curve matches the application's demands.

Key specification criteria

The most critical specification criteria include radial and axial stiffness rates, typically measured in Newtons per millimeter (N/mm), and torsional stiffness, measured in Newton-meters per degree (Nm/deg). These metrics define exactly how much the bushing will yield under a specific force.

As a general engineering threshold, radial deflection under normal static load is typically kept under 10% to 15% of the rubber wall thickness to prevent premature fatigue. Buyers must also evaluate the maximum allowable conical articulation (the angle at which the inner sleeve can pivot relative to the outer sleeve) to ensure the bushing can accommodate the required range of motion without tearing.

Environmental and operating conditions

Environmental factors drastically alter the effective load capacity and stiffness of a rubber bushing. Natural rubber, while mechanically superior at room temperature, begins to stiffen significantly at temperatures below -40°C, increasing the transmission of impact loads to the chassis. Conversely, sustained exposure to temperatures above 80°C accelerates oxidation and permanent set, reducing the load-bearing volume.

If the application involves exposure to petroleum-based fluids, UV radiation, or extreme thermal cycling, buyers must specify alternative elastomers like EPDM or Nitrile, even if it requires a slight compromise in ultimate load capacity. Adherence to ISO standards for vulcanized rubber testing ensures the material will perform predictably in harsh environments.

Testing and quality validation

Quality validation separates premium industrial bushings from unreliable alternatives. Reputable manufacturers provide data on dynamic fatigue testing, often subjecting prototypes to 1 million or more cycles at a 5 Hz to 10 Hz frequency to simulate lifetime wear. The results of these tests prove whether the rubber-to-metal bond can withstand continuous shear forces without delaminating.

Furthermore, the metal inner and outer sleeves should undergo salt spray testing (e.g., 480 to 720 hours) to verify corrosion resistance. For high-volume production, buyers should look for suppliers utilizing automated optical inspection and strict process controls to maintain defect rates below 50 Parts Per Million (PPM), ensuring consistent load capacity across every batch.

How to Select the Right Rubber Bushing

Procuring the right component involves aligning the mechanical demands of the project with the realities of manufacturing, cost, and logistics. Whether selecting a standard catalog item or investing in custom tooling, the choice must be driven by strict adherence to the required load and motion parameters.

Matching load and motion requirements

The selection process begins by calculating the required spring rate. If an industrial application imposes a maximum radial load of 5,000 N, and the surrounding clearance allows for a maximum deflection of 5 mm, the selected bushing must possess a minimum radial stiffness of 1,000 N/mm.

Engineers must map out the primary load vector (radial vs. axial) and the required degrees of freedom. Fully bonded bushings—where the rubber is vulcanized to both the inner and outer metal sleeves—are necessary for applications requiring high torsional resistance and zero maintenance. Unbonded or slip-fit bushings may be acceptable for lower-load, friction-tolerant applications.

When to choose custom designs

Standard off-the-shelf bushings are cost-effective but may not align perfectly with unique load constraints or spatial limitations. Custom designs become necessary when a specific, non-linear stiffness curve is required. For instance, an application might require a soft initial spring rate to isolate high-frequency vibrations, followed by a rapid ramp-up in stiffness to prevent bottoming out under heavy shock loads.

Custom bushings can be engineered with internal voids, kidney-shaped cutouts, or specialized dual-durometer compounds to achieve these complex load-deflection profiles. Buyers should opt for custom designs when standard catalog options force unacceptable compromises in either durability or NVH performance.

Sourcing, tooling, and lead time

Supply chain logistics heavily influence the selection between custom and standard components. Standard catalog bushings typically offer lead times of 1 to 2 weeks and low Minimum Order Quantities (MOQs). However, transitioning to a custom-engineered bushing requires upfront capital for mold tooling, which typically ranges from $1,500 to $5,000 depending on the complexity and the number of cavities.

Furthermore, custom runs require time for First Article Inspection (FAI) and dynamic testing, extending initial lead times to 4 to 8 weeks. MOQs for custom molded rubber components generally range from 1,000 to 5,000 units, making them more suitable for mid-to-high volume OEM production rather than limited-run aftermarket repairs.

Evaluation Summary for Buyers

Optimizing rubber bushing procurement requires a holistic view of the application's demands. Buyers must carefully navigate the inherent compromises between load support and dynamic isolation while implementing strict installation controls to ensure the theoretical load capacity translates into real-world reliability.

Trade-offs between load capacity and isolation

The ultimate trade-off in bushing selection lies between load-bearing strength and vibration damping. Buyers cannot maximize both simultaneously without altering the physical dimensions of the component. Selecting a harder compound increases the maximum weight the bushing can support but degrades its ability to isolate high-frequency noise.

When space constraints prevent the use of a larger bushing, and high load capacity is mandatory, buyers must accept the reduction in isolation efficiency. In such scenarios, secondary damping systems or tuned mass dampers may be required to manage the transmitted vibrational energy.

How to reduce failure risk

Even a perfectly specified bushing will fail prematurely if installation procedures are flawed. A leading cause of failure is improper press-fitting. The outer metal sleeve of a suspension bushing typically requires an interference fit of 0.05 mm to 0.15 mm into the housing. Excessive interference can crush the outer sleeve, pre-stressing the rubber and reducing its dynamic load capacity.

Additionally, fully bonded bushings must never be torqued into their final resting position while the suspension or machinery is unloaded. Fastening the inner sleeve while the system is hanging freely creates an immediate torsional pre-load once the equipment is lowered to its static ride height. This permanent twist consumes a significant portion of the bushing's load capacity, accelerating fatigue and tearing. Buyers must ensure that assembly protocols mandate tightening pivot bolts only when the system is resting at its neutral, fully loaded position.

Key Takeaways

• The most important conclusions and rationale for Rubber bushings
• Specs, compliance, and risk checks worth validating before you commit
• Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

What loads can rubber bushings typically support?

Capacity varies by size, compound, and load direction. Small bushings may handle about 50 lb, while heavy-duty bonded mounts can exceed 10,000 lb when properly engineered.

How do static, dynamic, and shock loads affect bushing selection?

Use static load for supported weight, dynamic load for repeated vibration, and shock load for impacts. For impact service, many designs use a 3x–5x safety factor over static load.

Does harder rubber always mean higher load capacity?

Usually yes, but with a tradeoff. Higher durometer or larger geometry increases load support, while softer compounds generally isolate vibration better but deflect more under weight.

What happens if a rubber bushing is undersized for the load?

It can over-deflect, build heat, crack, or delaminate from metal sleeves. Even about 20% overload may cut fatigue life significantly and increase noise and vibration.

Can King Rubber help match a rubber bushing to my application load?

Yes. Share your load, motion direction, frequency, temperature, and environment. King Rubber can recommend the right compound, hardness, geometry, and bonded construction for your use case.
