How do Rubber bushings and mounts reduce vehicle vibration?

Introduction

Vehicle vibration comes from the engine, drivetrain, suspension, and road surface, but it reaches the cabin only if those forces can travel through the vehicle’s structure. Rubber bushings and mounts interrupt that path by flexing under load, damping movement, and preventing direct metal-to-metal contact. Their effectiveness depends on material properties such as stiffness, elasticity, and internal damping, as well as where they are installed. This article explains how these components isolate noise and vibration, how they balance comfort with control, and why their design matters for ride quality, durability, and overall vehicle performance.

What are rubber bushings and mounts

Rubber bushings and mounts serve as foundational elastomeric isolators in automotive engineering, designed to absorb energy, reduce transmitted vibrations, and accommodate limited articulation between connected chassis and powertrain components. By acting as flexible interfaces, these components prevent metal-to-metal contact, thereby protecting structural integrity and enhancing overall ride quality.

The fundamental mechanics of these isolators rely on the unique viscoelastic properties of rubber materials. When subjected to mechanical stress, rubber acts simultaneously as a spring to store energy and as a dashpot to dissipate it, making it an indispensable material for managing dynamic loads in commercial and passenger vehicles.

How do elastic deformation and damping provide vibration isolation?

The primary mechanism for vibration isolation in elastomeric components relies on elastic deformation and internal damping. When a vehicle encounters road irregularities or engine pulsations, the rubber material deforms, absorbing the kinetic energy. The elastic nature of the compound allows it to return to its original shape, while its internal friction converts a portion of the mechanical energy into a small amount of heat.

Engineers measure this performance using the dynamic stiffness ratio, which typically ranges from 1.2 to 2.0 for automotive applications. A lower dynamic-to-static stiffness ratio indicates superior isolation capabilities at higher frequencies, ensuring that the component can rapidly respond to continuous vibrational inputs without transmitting the force into the vehicle cabin.

Where are rubber bushings and mounts used in vehicles?

Elastomeric mounts and bushings are strategically distributed across critical load-transfer points throughout a vehicle's architecture. Powertrain applications utilize engine and transmission mounts to support the mass of the drivetrain while isolating its inherent rotational and reciprocating vibrations from the chassis.

In the suspension system, control arm bushings, sway bar links, and subframe mounts accommodate suspension travel and maintain wheel alignment under high-stress cornering and braking forces. Heavy-duty commercial vehicles also employ robust cab mounts to isolate the driver environment from frame-twisting forces and harsh road inputs, significantly reducing operator fatigue.

How do rubber compounds, geometry, and bonding affect performance?

The intricate relationship between rubber compounding, part geometry, and metal-to-rubber bonding dictates the overall isolation efficiency. Adjusting the carbon black content and curing agents in the rubber matrix alters its modulus, directly impacting load-bearing capacity and flexibility. Furthermore, the physical geometry—such as the inclusion of voids or fluid-filled chambers—allows engineers to tune stiffness directionally, providing softer responses vertically for comfort while maintaining high lateral stiffness for handling.

Equally critical is the vulcanization and bonding process between the elastomer and its metal housings. A high-quality chemical bond must exhibit a minimum tear strength of 5 to 8 MPa. If the bond fails, the bushing will suffer from accelerated wear, unpredictable stiffness profiles, and, ultimately, catastrophic mechanical failure under heavy dynamic loading.

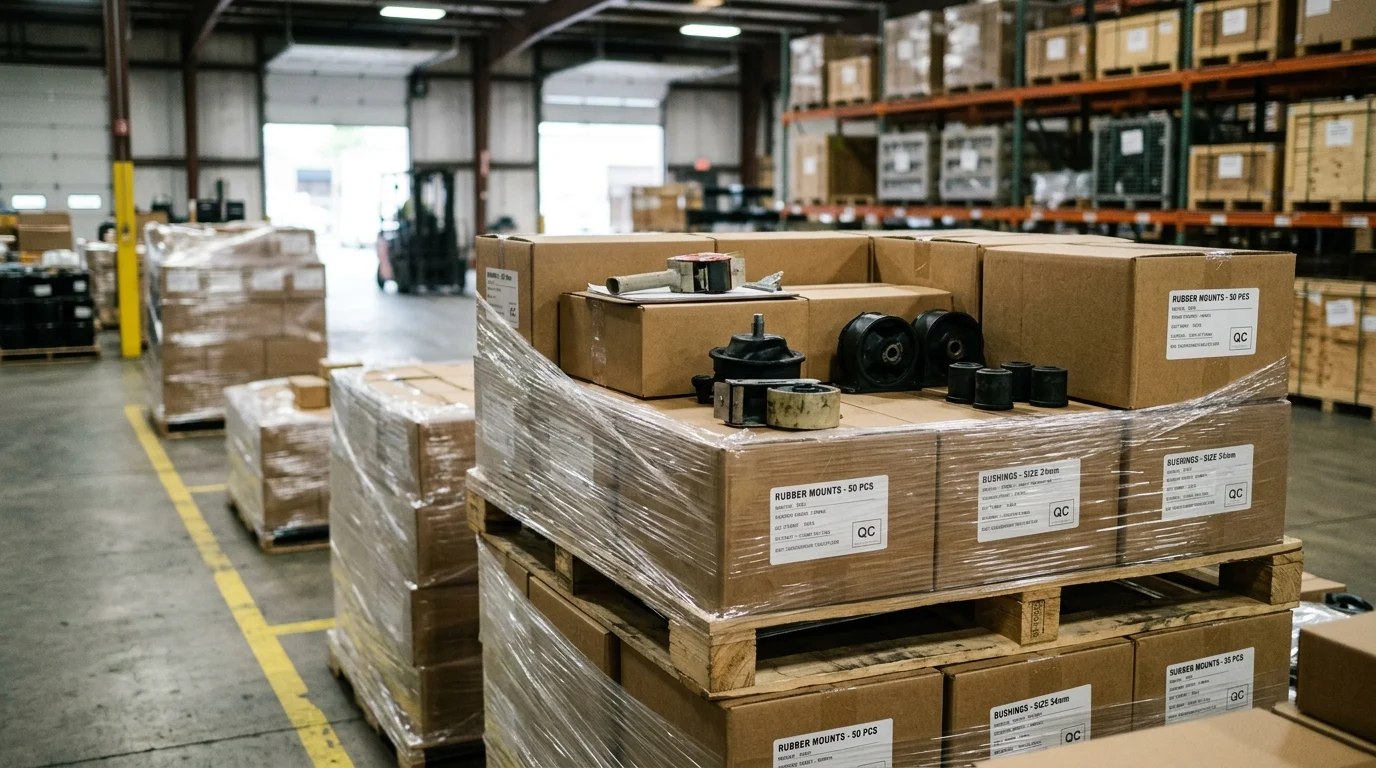

Why do rubber bushings and mounts matter for vehicle performance

The integration of high-quality rubber mounts directly correlates with a vehicle's operational refinement, passenger comfort, and structural longevity. Without these elastomeric buffers, the continuous barrage of kinetic energy from the road and powertrain would rapidly fatigue metal components, loosen fasteners, and create an uncomfortable acoustic environment inside the cabin.

How do they influence NVH performance?

Noise, Vibration, and Harshness (NVH) performance relies heavily on the ability of mounts to decouple structure-borne frequencies. Effective bushings isolate low-frequency, high-amplitude vibrations—typically ranging from 10 Hz to 30 Hz—which are generated by rough road surfaces and suspension articulation.

Simultaneously, these components must damp high-frequency, low-amplitude vibrations (ranging from 30 Hz up to 200 Hz) generated by engine combustion and drivetrain rotation. By shifting the natural resonance frequencies away from the operating range of the vehicle, properly tuned rubber mounts eliminate booming noises and steering wheel jitters, resulting in a dramatically quieter and smoother ride.

Why do OEMs, fleet operators, and component buyers prioritize them?

Original Equipment Manufacturers (OEMs), fleet operators, and procurement specialists prioritize high-quality elastomeric components because premature failure significantly impacts the total cost of ownership and brand reputation. In fleet operations, vehicle downtime translates directly into lost revenue.

The economic impact is disproportionate to the component price; replacing a failed $20 engine mount can easily incur over $300 in labor costs due to the complex disassembly required. Consequently, sourcing highly durable bushings reduces warranty claim rates for OEMs and minimizes unscheduled maintenance intervals for commercial fleets, making initial component quality a major financial priority.

How should engineers and buyers compare rubber bushings and mounts

Evaluating elastomeric isolators requires a rigorous comparative analysis of material properties, mechanical design, and application environments. Engineers and procurement teams cannot rely on a one-size-fits-all approach; they must weigh the distinct chemical and physical characteristics of different elastomers against the operational demands and budget constraints of the specific vehicle platform.

How do natural and synthetic rubber materials differ?

The choice between natural and synthetic rubber forms the baseline of component design. Natural Rubber (NR) remains the industry standard for dynamic applications due to its unmatched tensile strength, tear resistance, and inherent damping properties. However, it is highly susceptible to degradation from ozone, oil exposure, and extreme heat.

Synthetic alternatives are engineered to overcome these environmental vulnerabilities. Ethylene Propylene Diene Monomer (EPDM) offers exceptional weather and ozone resistance, while Polychloroprene (Neoprene) provides a balanced resistance to moderate oil exposure. Polyurethane (PU) is frequently selected for high-performance and heavy-duty applications due to its extreme abrasion resistance and load-bearing capacity.

What trade-offs matter in damping, durability, and cost?

Engineers must continuously navigate the inverse relationship between damping capability, dynamic stiffness, and material durability. Highly damped compounds excel at absorbing shock but often suffer from heat buildup under continuous rapid cycling, leading to premature thermal degradation. Conversely, stiffer compounds improve vehicle handling and carry heavier loads but transmit more harshness into the cabin.

From a commercial perspective, advanced synthetic compounds or hydro-elastic mounts (fluid-filled bushings) provide superior wide-band frequency isolation but can increase unit costs by 150% to 300% compared to standard solid natural rubber designs. Buyers must align these cost premiums with the target market of the vehicle, reserving complex fluid mounts for luxury platforms while optimizing solid rubber geometries for economy vehicles.

What are the most common failure modes?

Failure analysis of elastomeric mounts typically reveals three predominant modes: mechanical fatigue, thermal degradation, and environmental attack. Mechanical fatigue manifests as internal tearing and permanent set (loss of original shape) after millions of compression cycles, ultimately resulting in a loss of isolation and metal-to-metal clunking.

Thermal degradation hardens the rubber, severely diminishing its elasticity. Industry data indicates that continuous operation above 100°C can reduce the service life of standard natural rubber bushings by up to 50%. Environmental attack, primarily from road salts, automotive fluids, and ozone, accelerates surface cracking, which propagates under dynamic loading until the component physically shears apart.

What specifications and quality factors matter when sourcing

Procurement professionals must establish strict technical and quality parameters to ensure consistent batch-to-batch performance and mitigate supply chain risks. Evaluating a supplier's capability requires looking beyond unit pricing to scrutinize their engineering tolerances, material testing protocols, and adherence to global manufacturing standards.

Which technical specifications should be reviewed?

Key technical specifications begin with durometer ratings, typically measured on the Shore A scale. Automotive bushings generally require a hardness ranging from 40 to 75 Shore A, depending on the required load-bearing capacity and desired compliance. Buyers must also review the compound's tensile strength, elongation at break, and compression set.

For advanced NVH mitigation, engineers evaluate the loss angle (tan delta), which quantifies the material's ability to dissipate energy as heat. A strict specification of dynamic stiffness across varying temperature bands (e.g., -40°C to +120°C) is essential to guarantee that the mount will not become dangerously brittle in winter conditions or overly soft during peak summer heat.

How do manufacturing quality controls and testing affect reliability?

Component reliability hinges on stringent manufacturing quality controls. Advanced suppliers utilize Moving Die Rheometers (MDR) to monitor the vulcanization process, ensuring the cure characteristics of every rubber batch meet exact specifications before molding begins.

Post-production testing is equally critical. Quality assurance protocols should include multi-axis fatigue testing, where prototypes are subjected to upwards of 1 million cycles to simulate lifetime vehicle wear. Furthermore, robust suppliers maintain strict dimensional tolerances—often within ±0.15 mm for metal housings—using automated optical inspection systems to guarantee precise fitment during vehicle assembly.

What compliance and application standards should buyers check?

Global buyers must verify compliance with rigorous international automotive frameworks. Certification to standards established by organizations such as the International Organization for Standardization (e.g., ISO 9001 and IATF 16949) is non-negotiable for Tier 1 and Tier 2 automotive suppliers, ensuring comprehensive quality management systems are in place.

Additionally, environmental and chemical compliance frameworks, such as REACH and RoHS, dictate the restriction of hazardous toxins, heavy metals, and specific phthalates in rubber compounding. Adherence to these standards protects buyers from sudden regulatory supply chain disruptions and ensures the end products are safe for global distribution.

How can buyers select the right rubber bushings and mounts

Strategic procurement of vibration isolation components demands a systematic approach that bridges engineering requirements with supply chain realities. Successfully sourcing these parts requires buyers to translate complex NVH data into actionable manufacturing criteria while managing logistical constraints.

What step-by-step process helps match application and vibration requirements?

The selection process begins with a comprehensive application analysis. Engineers must first map the static mass of the supported component and the dynamic frequency spectrum of the vehicle platform. By identifying the target isolation frequencies and maximum load vectors, buyers can narrow down the required material families and durometer ranges.

Following material selection, buyers should request rapid prototypes for physical validation. This phase involves installing the mounts on test rigs or mule vehicles to measure real-world vibration transmissibility, allowing for iterative geometric tuning (such as altering void sizes) before finalizing the production molds.

How should buyers balance customization, MOQ, lead time, and total cost?

Commercial viability requires balancing custom engineering with standard production metrics. While custom tooling offers optimized geometry and tailored NVH characteristics, it typically demands Minimum Order Quantities (MOQs) ranging from 2,000 to 10,000 units to offset tooling costs, alongside extended lead times of 6 to 12 weeks for mold creation and validation.

For lower-volume applications, such as specialized heavy machinery or niche performance vehicles, buyers might opt for off-the-shelf standardized mounts. This significantly reduces lead times and lowers MOQs, though it often requires slight compromises in package space or optimal frequency tuning.

Why does a decision-oriented sourcing approach improve long-term value?

A decision-oriented sourcing approach focuses on total lifecycle value rather than isolated unit price. By evaluating suppliers based on their vertical integration—such as in-house rubber compounding, metal stamping, and automated bonding capabilities—buyers can reduce supply chain bottlenecks and ensure tighter quality control.

Ultimately, investing slightly more in high-grade elastomeric compounds and rigorous supplier validation yields exponential returns. By factoring in warranty reduction, ease of assembly-line installation, and operational durability, procurement teams achieve a substantially lower total cost of ownership while delivering a superior, vibration-free product to the end user.

Key Takeaways

• The most important conclusions and rationale for https://www.king-rubber.com
• Specs, compliance, and risk checks worth validating before you commit
• Practical next steps and caveats readers can apply immediately

Frequently Asked Questions

How do rubber bushings and mounts reduce vehicle vibration?

They flex under load and use rubber’s internal damping to absorb road and engine energy, reducing vibration transfer into the chassis and cabin.

Where are rubber bushings and mounts commonly used in vehicles?

They are used in engine and transmission mounts, control arms, sway bars, subframes, and cab mounts to isolate vibration at key load points.

Why does rubber compound choice matter for vibration control?

Compound hardness and damping determine how much movement and energy absorption a part provides. The right formula balances comfort, handling, and durability.

What signs show a bushing or mount may be failing?

Common signs include excess vibration, clunking, steering shake, uneven tire wear, or visible cracks and separation in the rubber.

Can King Rubber provide custom rubber bushings and mounts for OEM or fleet needs?

Yes. King Rubber supports custom elastomer parts with tailored compounds, geometry, and bonding to match vehicle load, NVH, and service-life requirements.
